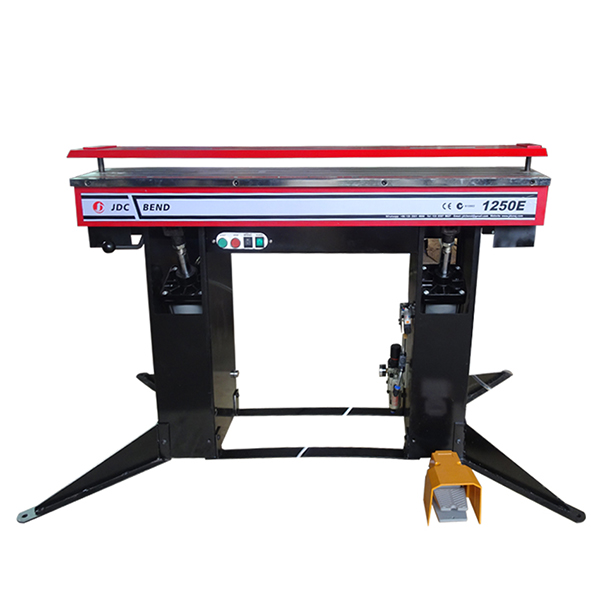

 JDC BEND™ 1250E DOUBLE E-TYPE MAGNET BODY Powered 1250mm x 2.0mm Electromagnetic Sheet Metal Folding Machine

Product image is only a representation, actual product appearance may differ slightly

JDC 1250E DOUBLE E-TYPE MAGNET BODY Powered High performance electromagnetic sheet metal folder Specifications

Nominal capacity 1250 mm x 2.0 mm (4ft x 15g)
48” (4-foot) length with a maximum capacity of 15 gauge mild steel.
Clamping force (with standard full-length clampbar) 12Tons  is consistent across the entire beam, allowing for crisp bends even in the middle
of the brake.
Recommended for HVAC shops,Tech schools, industrial art shops, and general sheet metal fabrication shops.
Making enclosed boxes, triangles, alternate bends on varying planes, and round items such
as scrolling applications.

Bending a variety of materials, including sheets of mild steel, stainless steel, aluminum,
coated materials, heated plastics,and more.
Eletrical Supply: 1Phase & Pneumatic air supply, 220/240 V ac and will work at virtually any site.
Nominal current: 15Amp
Duty cycle: 30%
Box Depth Unlimited
Bend Angle 0-180°
Max. Clamping Bar Lift Unlimited
Max. Capacity with Extension 16ga stainless steel
Max. Capacity without Extension 15ga stainless steel
Thermal Cut-Out 158°F (70°C)
Shipping dimensions  1.41m x 0.95m x 1.1m = 1.6m3
GW/NW 300/280kg
Blade gap adjustment Blade gap adjustment on the clamping bars lets you work with sheet metal of different
thicknesses.
adjustable back gauges Comes with product supports and adjustable back gauges for production runs.
Scaled stroke angle control lets you deliver repeatable bends time after time.
Notes Capacities can change depending on set up leaf extension. Rule of thumb for mild steel,
16ga.,
extension OFF. 18ga. extension On or Off, 20ga. and thinner, extension On.
Easy operation 1.Put a piece of material between the clamping bar to the depth required.
2. Engage the powerful magnet in the bending bed with push button control.
3. Hit the foot pedal that softly clamps the material. This foot control keeps your fingers
safely out
of the machine and you to reposition the material.

4. Lift the the bottom bending leaf to complete the bend and repositioned ready for
another bend.
open-ended design 1. allows you to create fully enclosed ducts and shapes impossible to make with a
traditional box
and pan brake.
2. JDC BEND electromagnetic sheet metal brake can bend boxes or pans to almost
any depth,
since it isn’t reliant on conventional finger depths.
Standard accessories include a storage tray, adjustable backstops, A full-length clamp-bar,and a complete
set of
short-length clamp-bars.
Optional accessories  available for these models include a narrow clampbar, a slotted clampbar for forming
shallow
boxes more quickly
Special tooling  Special tooling can be quickly improvised from pieces of steel to help fold-up difficult
shapes,
and for production work the standard clampbars can be replaced by specialised tooling
Operator Safety Operator Safety is enhanced by a two-handed electrical interlock that ensures a safe
pre-clamping force is applied before full clamping occurs.

JDC BEND BENDING CAPACITIES (WITH STANDARD FULL-LENGTH CLAMPBAR)

MATERIAL (yield/ult. stress) THICKNESS LIP WIDTH (minimum) BEND RADIUS (typical)
Mild Steel
(250/320 MPa)
2.0mm 30 mm* 3.5 mm
1.6 mm 15 mm 2.2 mm
1.4mm 10 mm 1.5 mm
Aluminium
Grade 5005 H34
(140.160 MPa)
2.2 mm 30 mm* 1.8 mm
1.7 mm 15 mm 1.2 mm
1.5 mm 10 mm 1.0 mm
Stainless Steel
Grades 304, 316
(210/600 MPa)
1.4 mm 30 mm* 3.5 mm
1.1 mm 15 mm 3.0 mm
0.9mm 10 mm 1.8 mm




Product detail pictures:

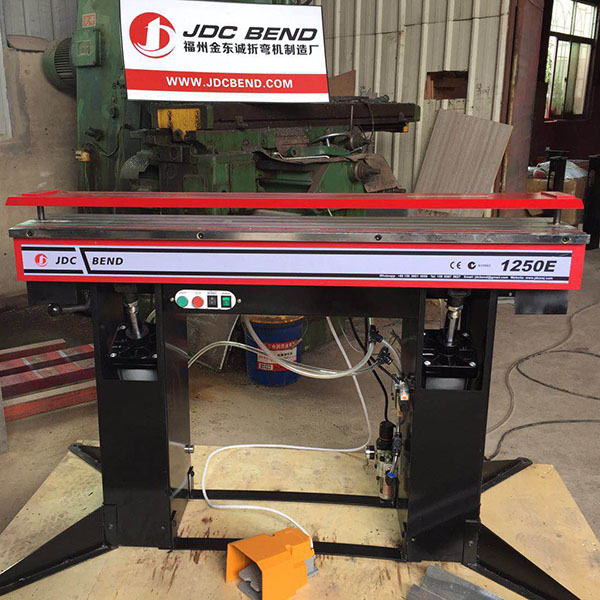

Newly Arrival 48 Finger Brake -
 IOS Certificate 1250e Magnetic Bending Machine – JINDONGCHENG detail pictures

Newly Arrival 48 Finger Brake -
 IOS Certificate 1250e Magnetic Bending Machine – JINDONGCHENG detail pictures
