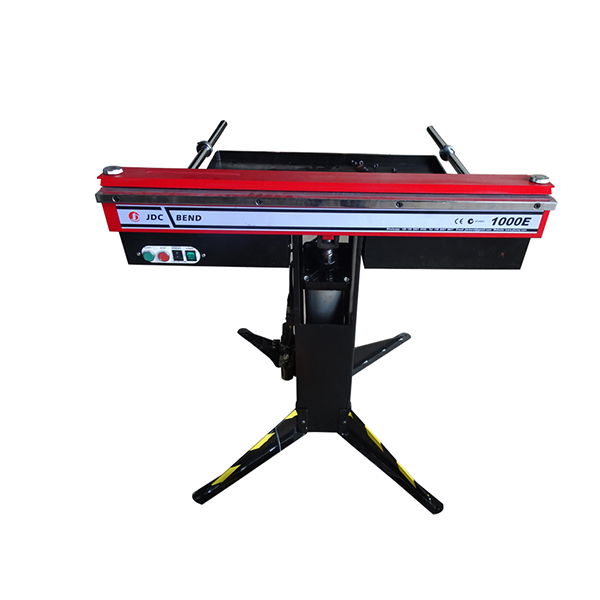

JDC BEND™ 1000E Powered 1000mm x 1.6mm Electromagnetic Sheet Metal Folding Machine,No more lifting!

Product image is only a representation, actual product appearance may differ slightly

JDC BEND™ 1000E Powered 1000mm x 1.6mm Electromagnetic Sheet Metal Folding Machine Specifications

Nominal capacity 1000 mm x 1.6 mm
39” (3-foot) length with a maximum capacity of 16 gauge mild steel.
Clamping force (with standard full-length clampbar) 4.5Tons  is consistent across the entire beam, allowing for crisp bends even in the middle
of the brake.
Recommended for HVAC shops,Tech schools, industrial art shops, and general sheet metal fabrication shops.
Making enclosed boxes, triangles, alternate bends on varying planes, and round items such
as scrolling applications.

Bending a variety of materials, including sheets of mild steel, stainless steel, aluminum,
coated materials, heated plastics,and more.
Eletrical Supply: 1Phase & Pneumatic air supply, 220/240 V ac and will work at virtually any site.
Nominal current: 10 Amp
Duty cycle: 30%
Box Depth Unlimited
Bend Angle 0-180°
Max. Clamping Bar Lift Unlimited
Max. Capacity with Extension 18ga. (1.21mm) mild steel / 21ga. (0.83mm) stainless steel
Max. Capacity without Extension 16ga. (1.51mm) mild steel / 20ga. (0.91mm) stainless steel
Thermal Cut-Out 158°F (70°C)
Shipping dimensions  1.17m x 0.95m x1.1m = 1.22m3
GW/NW 150kg/130kg
Blade gap adjustment Blade gap adjustment on the clamping bars lets you work with sheet metal of different
thicknesses.
adjustable back gauges Comes with product supports and adjustable back gauges for production runs.
Scaled stroke angle control lets you deliver repeatable bends time after time.
Notes Capacities can change depending on set up leaf extension. Rule of thumb for mild steel,
16ga., extension OFF. 18ga. extension On or Off, 20ga. and thinner, extension On.
Easy operation 1.Put a piece of material between the clamping bar to the depth required.
2. Engage the powerful magnet in the bending bed with push button control.
3. Hit the foot pedal that softly clamps the material. This foot control keeps your fingers
safely out of the machine and you to reposition the material.

4. Lift the the bottom bending leaf to complete the bend and repositioned ready for
another bend.
open-ended design 1. allows you to create fully enclosed ducts and shapes impossible to make with a
traditional box and pan brake.
2. JDC BEND electromagnetic sheet metal brake can bend boxes or pans to almost any
depth,since it isn’t reliant on conventional finger depths.
Standard accessories include a storage tray, adjustable backstops, A full-length clamp-bar,and a complete set
of short-length clamp-bars.
Optional accessories  available for these models include a narrow clampbar, a slotted clampbar for forming
shallow boxes more quickly
Special tooling  Special tooling can be quickly improvised from pieces of steel to help fold-up difficult
shapes, and for production work the standard clampbars can be replaced by specialised
tooling
Operator Safety Operator Safety is enhanced by a two-handed electrical interlock that ensures a safe
pre-clamping force is applied before full clamping occurs.

 JDC BEND BENDING CAPACITIES (WITH STANDARD FULL-LENGTH CLAMPBAR)

MATERIAL (yield/ult. stress) THICKNESS LIP WIDTH (minimum) BEND RADIUS (typical)
Mild Steel
(250/320 MPa)
1.6 mm 30 mm* 3.5 mm
1.2 mm 15 mm 2.2 mm
1.0 mm 10 mm 1.5 mm
Aluminium
Grade 5005 H34
(140.160 MPa)
1.6 mm 30 mm* 1.8 mm
1.2 mm 15 mm 1.2 mm
1.0 mm 10 mm 1.0 mm
Stainless Steel
Grades 304, 316
(210/600 MPa)
1.0 mm 30 mm* 3.5 mm
0.9 mm 15 mm 3.0 mm
0.8 mm 10 mm 1.8 mm

With standard bending-beam extension fitted

For most non-ferrous metals (copper, brass, zinc, etc) refer to aluminium above.

1-year parts warranty as well as lifetime technical support by phone or email jdcbend@gmail.com

specifications subject to change without notice.

Every JDC BEND modle have in stock , We can arrange shipping  to you ASAP

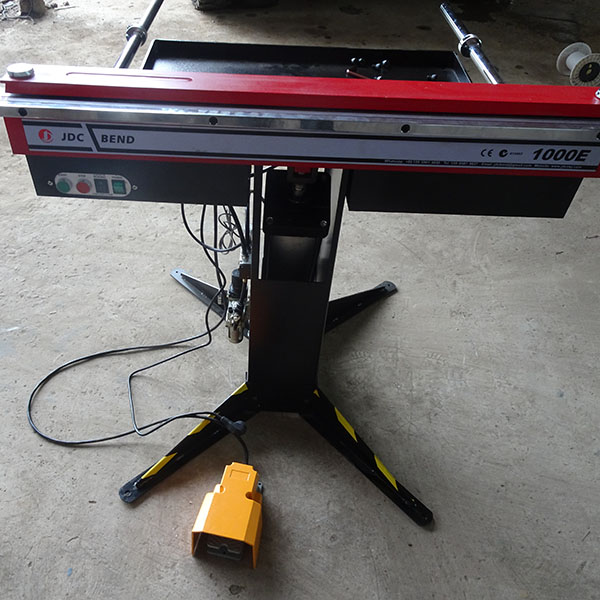

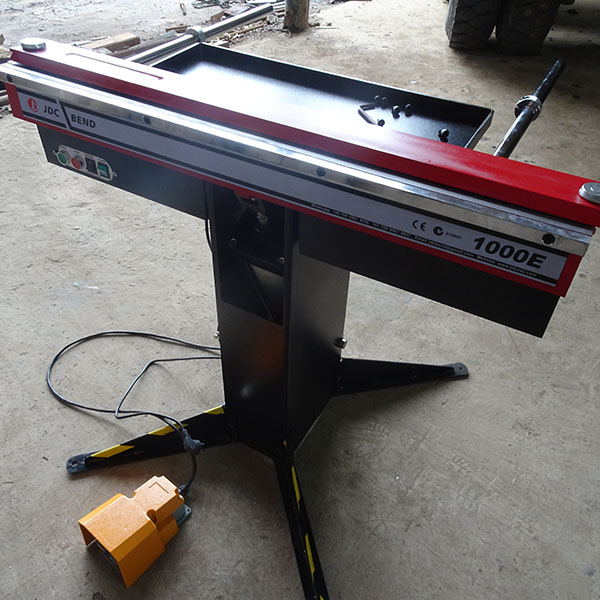

Product detail pictures:
