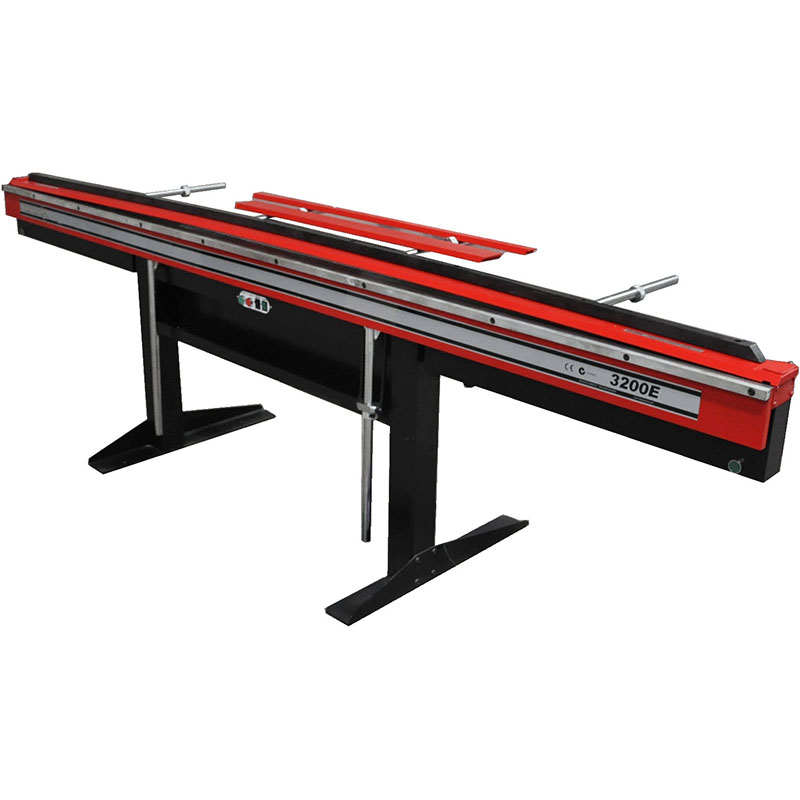

JDC BEND™ 3200E Magnetic sheet metal brake

Product image is only a representation, actual product appearance may differ slightly

JDC 3200E High performance electromagnetic sheet metal folder Specifications

Nominal capacity 3200 mm x 1.6 mm (10ft x 18g)
127” (10-foot) length with a maximum capacity of 18 gauge mild steel.
Clamping force (with standard full-length clampbar) 10 Tons  is consistent across the entire beam, allowing for crisp bends even in the
middle of the brake.
Recommended for HVAC shops,Tech schools, industrial art shops, and general sheet metal fabrication
shops.
Making enclosed boxes, triangles, alternate bends on varying planes, and round
items such as scrolling applications.
Bending a variety of materials, including sheets of mild steel, stainless steel,
aluminum, coated materials, heated plastics,and more.
Eletrical Supply: 1 phase, 220/240 V ac and will work at virtually any site.
Nominal current: 15Amp
Duty cycle: 30%
Box Depth Unlimited
Bend Angle 0-180°
Max. Clamping Bar Lift Unlimited
Max. Capacity with Extension 18ga. (1.21mm) mild steel / 21ga. (0.83mm) stainless steel
Max. Capacity without Extension 16ga. (1.51mm) mild steel / 20ga. (0.91mm) stainless steel
Thermal Cut-Out 158°F (70°C)
Shipping dimensions  3.4m x 0.38m x 0.32m = 0.4m3
GW/NW 450kg/380kg
Blade gap adjustment Blade gap adjustment on the clamping bars lets you work with sheet metal of
different thicknesses.
adjustable back gauges Comes with product supports and adjustable back gauges for production runs.
Scaled stroke angle control lets you deliver repeatable bends time after time.
Notes Capacities can change depending on set up leaf extension. Rule of thumb for
mild steel, 16ga., extension OFF. 18ga. extension On or Off, 20ga. and thinner,
extension On.
Easy operation 1.Put a piece of material between the clamping bar to the depth required.
2. Engage the powerful magnet in the bending bed with push button control.
3. Hit the foot pedal that softly clamps the material. This foot control keeps your
fingers safely out of the machine and you to reposition the material.
4. Lift the the bottom bending leaf to complete the bend and repositioned ready
for another bend.
open-ended design 1. allows you to create fully enclosed ducts and shapes impossible to make with
a traditional box and pan brake.2. JDC BEND electromagnetic sheet metal brake
can bend boxes or pans to
almost any depth,since it isn’t reliant on conventional finger depths.
Standard accessories include a storage tray, adjustable backstops, A full-length clamp-bar,and a
complete set of short-length clamp-bars.
Optional accessories  available for these models include a narrow clampbar, a slotted clampbar for
forming shallow boxes more quickly
Special tooling  Special tooling can be quickly improvised from pieces of steel to help fold-up
difficult shapes, and for production work the standard clampbars can be replaced
by specialised tooling
Operator Safety Operator Safety is enhanced by a two-handed electrical interlock that ensures
a safe pre-clamping force is applied before full clamping occurs.

JDC BEND BENDING CAPACITIES (WITH STANDARD FULL-LENGTH CLAMPBAR)

MATERIAL (yield/ult. stress) THICKNESS LIP WIDTH (minimum) BEND RADIUS (typical)
Mild Steel
(250/320 MPa)		 1.6 mm 30 mm* 3.5 mm
1.2 mm 15 mm 2.2 mm
1.0 mm 10 mm 1.5 mm
Aluminium
Grade 5005 H34
(140.160 MPa)		 1.6 mm 30 mm* 1.8 mm
1.2 mm 15 mm 1.2 mm
1.0 mm 10 mm 1.0 mm
Stainless Steel
Grades 304, 316
(210/600 MPa)		 1.0 mm 30 mm* 3.5 mm
0.9 mm 15 mm 3.0 mm
0.8 mm 10 mm 1.8 mm

With standard bending-beam extension fitted

For most non-ferrous metals (copper, brass, zinc, etc) refer to aluminium above.

1-year parts warranty as well as lifetime technical support by phone or email jdcbend@gmail.com

specifications subject to change without notice.

Every JDC BEND modle have in stock , We can arrange shipping  to you ASAP
